Solar Thermal Photovoltaics
|

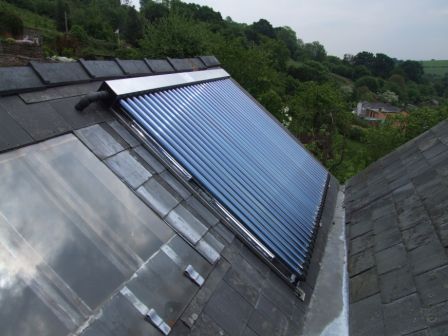

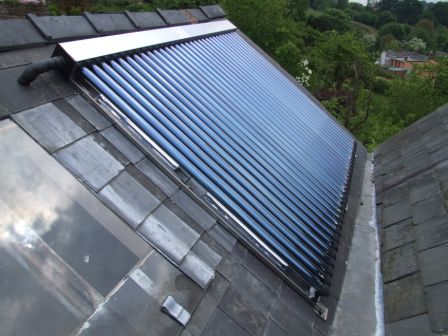

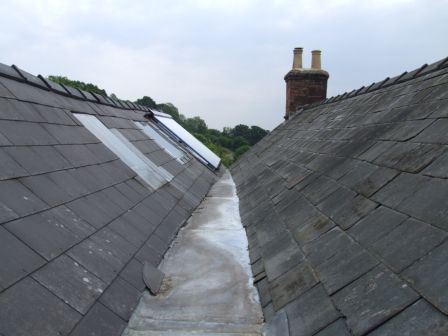

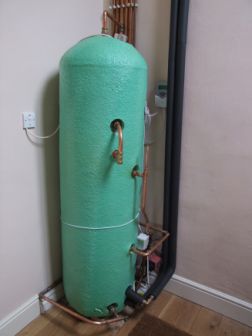

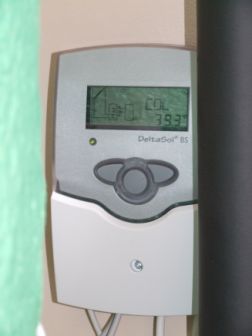

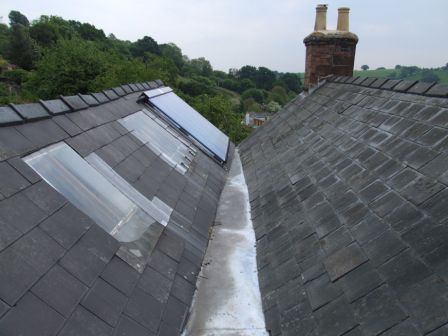

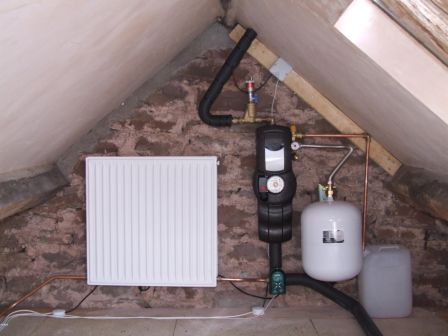

Justin installed a system for Bruce Allen at Blakeney, Gloucestershire. A new 250 litre vented twin coil cylinder was fitted in place of the smaller single coil cylinder. Bruce requested the controller be positioned next to the cylinder as he planned to box this area in at some point in the future. Bruce decided that the collector would be positioned between the two roofs to almost hide its position on the property which was 200 years old. As the pictures show it is possible to fix Solar Collectors very discreetly if thought is applied to the installation. A Heat-dump was fitted under the roof area. The system comprised 1 x Eco-58-1800-30 Resol Flowcon A pump station Resol BS4 controller 3 port diverter valve SP1 surge protector Inline AAV 1 KWH radiator for the heat dump 250 litre twin coil vented cylinder
Thanks to Bruce and Justin for this information.
|
